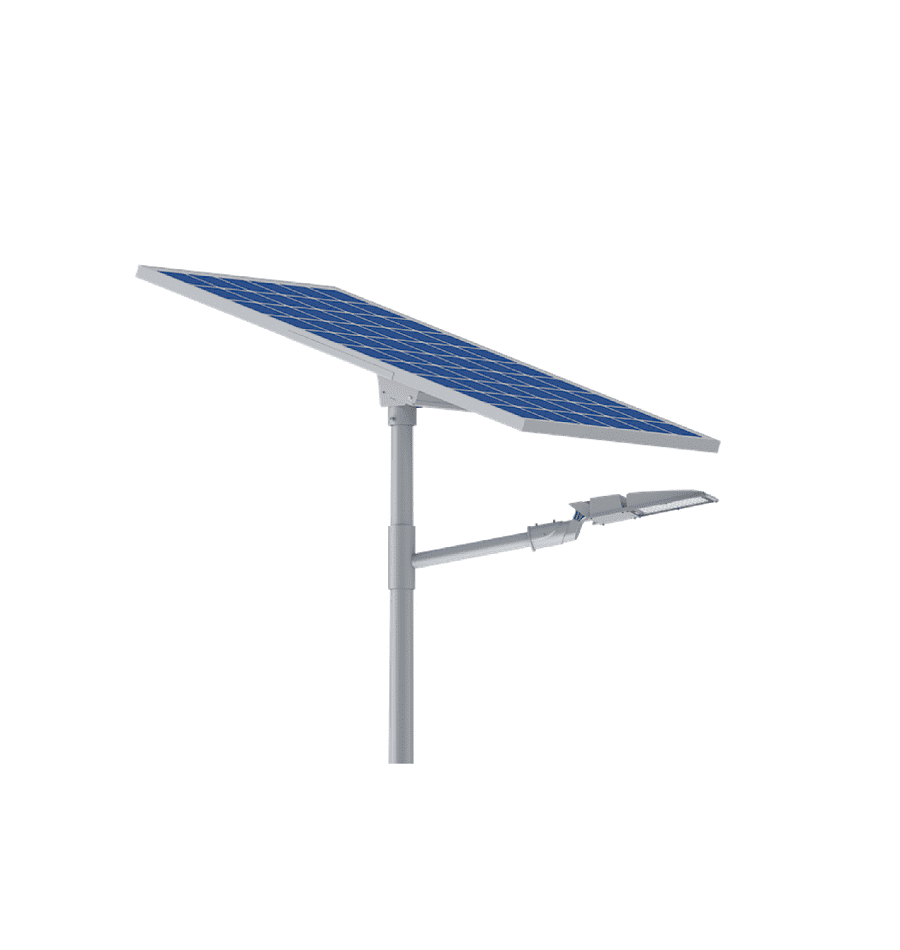

All in Two Solar Road and Street Luminaire 100W/14000 lm
High-Power LED Chip
Product Summary | Details |
|---|---|
Product Code | LS-M-144S-100 / 340-160 |
Luminaire Power | 100 W |
Luminous Flux | 14000 lm |
LED Brands | 3030 SMD LED |
Driver | Enec Certificate LED drivers |
Charge Controller | 10 Ah MPPT |
Standards Compliance | EN60598-2-3, LM80, TM21 |
Production Note | Production can be tailored to special demands |
Description | Value / Options |
|---|---|
Solar Panel Power | 340 Wp Monocrystalline Perc. |
Solar Panel Life Span | 25 years |
System Voltage | 25,6 Vdc |
Charge Controller | 10 Ah MPPT |
Battery Type | 32700 LifePO4 |
Battery Capacity | 80 Ah, / 25,6 Vdc / 2048,00 Wh |
Battery Life Span | 3000 cycles with 80% discharge |
Input Voltage | Off Grid |
Frequency | Off Grid |
Description | Value / Options |
|---|---|
Housing | Aluminum |
IP Rating | IP65 |
IK Rating | IK09 |
RAL Code | 7016 |
Console Entry | 60 mm Max. |
Operating Temperature | -30°C / +50°C |
Energy and Luminaire Dimensions | 1670 x 1000 × 135 mm./ 285 x 660 x 165 mm |
Luminaire Weight | 40,00 kg |
Packing Dimensions & Weight | 1680 × 1010 × 150 mm / 42,00 kg |
Description | Value / Options |
|---|---|
Luminire Power | 80 W |
Efficacy (lm / W) | 140 lm / W |
Luminous Flux | 11200 lm |
Light Source | 3030 Led |
LED Chip Lifetime | 100k hrs - LYO110 |
Driver Type | Enec Certificate Led Driver |
Motion Sensor | Yes / Microwave |
Class | III |
Description | Value / Options |
Light Distribution | Asymmetric |
Diffuser | 4mm Tempered glass |
Colour Temperature (CCT) | 6500 K |
CRI | >70 |
Description | Value / Options |
Step Dim | ✓ |
RAL Code | ✓ |
Autonomous Time | ✓ |
Colour Temperature | 3000K / 4000K / 5000 / 5700K |
CRI | > 80 |
Remote Control | Wifi |
