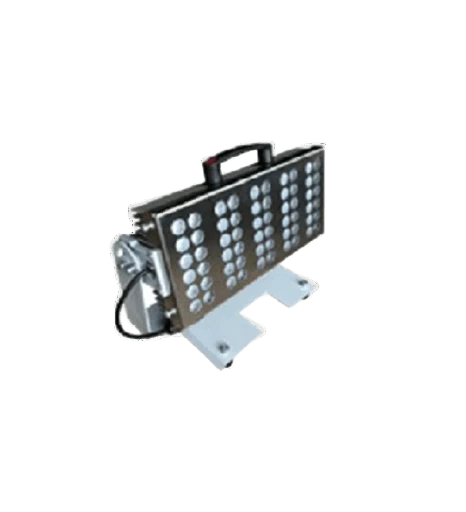

Floodlights Portable Smart

High-Power LED Chip

QUALITY STANDARDS ISO, TSE, CE, ENEC, IP66,IK09,EMC

Product Summary

Details

LED Brands

CREE / Samsung / Osram / Philips

Driver

Philips Enec Certificate LED Driver

Efficacy  (lm/W)

90–150 lm/W

Coating  Color

RAL Code 9006 (Optional)

Electrical Protection Class

Class I / Class II

Standards Compliance

EN 60598‑2‑5; / EN 60598‑1

Production Note

Production can be tailored to special demands

CREE, PHILIPS, SAMSUNG, OSRAM

Description

Value / Options

CRI

>70  /  >80 (Optional)

Colour Temperature CCT

3000 K / 4000 K / 6500 K (Optional)

Light Source

High Power LED

LED Life

50,000 hours

Optical Light Distribution

Symmetric / Asymmetric (Optional)

Mounting Console

Included

Dimensions (mm) a x b x c

350 x 400 x 200

Description

Value / Options

Input Voltage

220–240 VAC, 50-60 Hz

Power Factor

>0.95

Dimming / Control Interfaces

Step Dim;  1–10 V;  DALI;  Zhaga Socket

Driver

Philips Enec LED Driver

Description

Value / Options

Housing

Aluminium body

Diffuser - Front Cover

PMMA Lens With Steel Cover

Gasket

Silicone gasket

Mounting Console

Included

Paint RAL Code

9006 / Any RAL Code

Code

Power (W)

Luminous Flux (lm)

Efficacy (lm/W)

PORT.FL.00.150

150

16500

110

PORT.FL.01.200

200

22000

110

PORT.FL.02.250

250

27500

110

PORT.FL.03.150

150

18000

120

PORT.FL.04.200

200

24000

120

PORT.FL.05.250

250

30000

120

PORT.FL.06.150

150

19500

130

PORT.FL.07.200

200

26000

130

PORT.FL.08.250

250

32500

130
