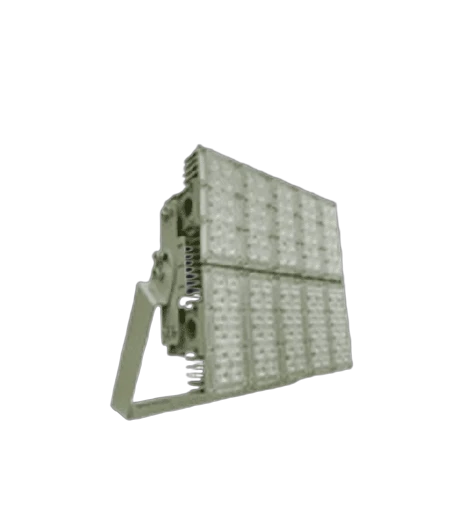

Floodlights Dynamics 2x5

High-Power LED Chip

QUALITY STANDARDS ISO, TSE, CE, ENEC, IP66,IK09,EMC

Product Summary

Details

LED Brands

CREE / Samsung / Osram / Philips

Driver

Philips Enec Certificate LED Driver

Efficacy  (lm/W)

90–150 lm/W

Coating  Color

RAL Code 9006 (Optional)

Electrical Protection Class

Class I / Class II

Standards Compliance

EN 60598‑2‑5; / EN 60598‑1

Production Note

Production can be tailored to special demands

CREE, PHILIPS, SAMSUNG, OSRAM

Description

Value / Options

CRI

>70  /  >80 (Optional)

Colour Temperature CCT

3000 K / 4000 K / 6500 K (Optional)

Light Source

High Power LED

LED Life

50,000 hours

Optical Light Distribution

Symmetric / Asymmetric (Optional)

Mounting Console

Included

Dimensions (mm) a x b x c

456 x 410 x 274

Description

Value / Options

Input Voltage

220–240 VAC, 50-60 Hz

Power Factor

>0.95

Dimming / Control Interfaces

Step Dim;  1–10 V;  DALI;  Zhaga Socket

Driver

Philips Enec LED Driver

Description

Value / Options

Housing

Aluminium body

Diffuser - Front Cover

PMMA Lens

Gasket

Silicone gasket

Mounting Console

Included

Paint RAL Code

9006 / Any RAL Code

Code

Power (W)

Luminous Flux (lm)

Efficacy (lm/W)

2X5M.FL.00.400

400

40000

100

2X5M.FL.01.500

500

50000

100

2X5M.FL.02.400

400

44000

110

2X5M.FL.03.500

500

55000

110

2X5M.FL.04.400

400

48000

120

2X5M.FL.05.500

500

60000

120

2X5M.FL.06.400

400

52000

130

2X5M.FL.07.500

500

65000

130
