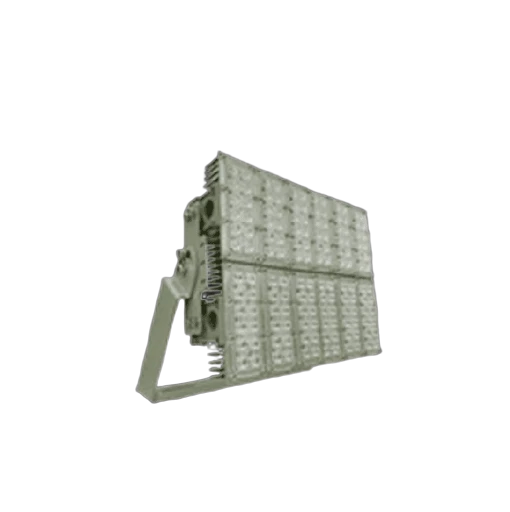

Floodlights Dynamics 2x6

High-Power LED Chip

QUALITY STANDARDS ISO, TSE, CE, ENEC, IP66,IK09,EMC

Product Summary

Details

LED Brands

CREE / Samsung / Osram / Philips

Driver

Philips Enec Certificate LED Driver

Efficacy  (lm/W)

90–150 lm/W

Coating  Color

RAL Code 9006 (Optional)

Electrical Protection Class

Class I / Class II

Standards Compliance

EN 60598‑2‑5; / EN 60598‑1

Production Note

Production can be tailored to special demands

CREE, PHILIPS, SAMSUNG, OSRAM

Description

Value / Options

CRI

>70  /  >80 (Optional)

Colour Temperature CCT

3000 K / 4000 K / 6500 K (Optional)

Light Source

High Power LED

LED Life

50,000 hours

Optical Light Distribution

Symmetric / Asymmetric (Optional)

Mounting Console

Included

Dimensions (mm) a x b x c

530 x 410 x 274

Description

Value / Options

Input Voltage

220–240 VAC, 50-60 Hz

Power Factor

>0.95

Dimming / Control Interfaces

Step Dim;  1–10 V;  DALI;  Zhaga Socket

Driver

Philips Enec LED Driver

Description

Value / Options

Housing

Aluminium body

Diffuser - Front Cover

PMMA Lens

Gasket

Silicone gasket

Mounting Console

Included

Paint RAL Code

9006 / Any RAL Code

Code

Power (W)

Luminous Flux (lm)

Efficacy (lm/W)

2X6M.FL.00.500

500

50000

100

2X6M.FL.01.600

600

60000

100

2X6M.FL.02.500

500

55000

110

2X6M.FL.03.600

600

66000

110

2X6M.FL.04.500

500

60000

120

2X6M.FL.05.600

600

72000

120

2X6M.FL.06.500

500

65000

130
