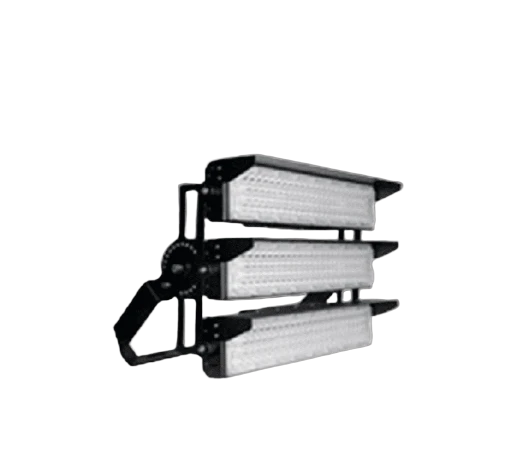

Floodlights With Hat Electron 3x1
High-Power LED Chip
Product Summary | Details |
|---|---|
LED Brands | CREE / Samsung / Osram / Philips |
Driver | Philips Enec Certificate LED Driver |
Efficacy (lm/W) | 90–150 lm/W |
Coating Color | RAL Code 9006 (Optional) |
Electrical Protection Class | Class I / Class II |
Standards Compliance | EN 60598‑2‑5; / EN 60598‑1 |
Production Note | Production can be tailored to special demands |
Description | Value / Options |
|---|---|
CRI | >70 / >80 (Optional) |
Colour Temperature CCT | 3000 K / 4000 K / 6500 K (Optional) |
Light Source | High Power LED |
LED Life | 50,000 hours |
Optical Light Distribution | Symmetric / Asymmetric (Optional) |
Mounting Console | Included |
Dimensions (mm) a x b x c | 550 x 440 x 200 |
Description | Value / Options |
|---|---|
Input Voltage | 220–240 VAC, 50-60 Hz |
Power Factor | >0.95 |
Dimming / Control Interfaces | Step Dim; 1–10 V; DALI; Zhaga Socket |
Driver | Philips Enec LED Driver |
Description | Value / Options |
|---|---|
Housing | Aluminium body |
Diffuser - Front Cover | PMMA Lens |
Gasket | Silicone gasket |
Mounting Console | Included |
Paint RAL Code | 9006 / Any RAL Code |
Code | Power (W) | Luminous Flux (lm) | Efficacy (lm/W) |
|---|---|---|---|
3X1R.FL.00.600 | 600 | 60000 | 100 |
3X1R.FL.01.700 | 700 | 70000 | 100 |
3X1R.FL.02.600 | 600 | 66000 | 110 |
3X1R.FL.03.700 | 700 | 77000 | 110 |
3X1R.FL.04.600 | 600 | 72000 | 120 |
3X1R.FL.05.700 | 700 | 84000 | 120 |
3X1R.FL.06.600 | 600 | 78000 | 130 |
3X1R.FL.07.700 | 700 | 91000 | 130 |
