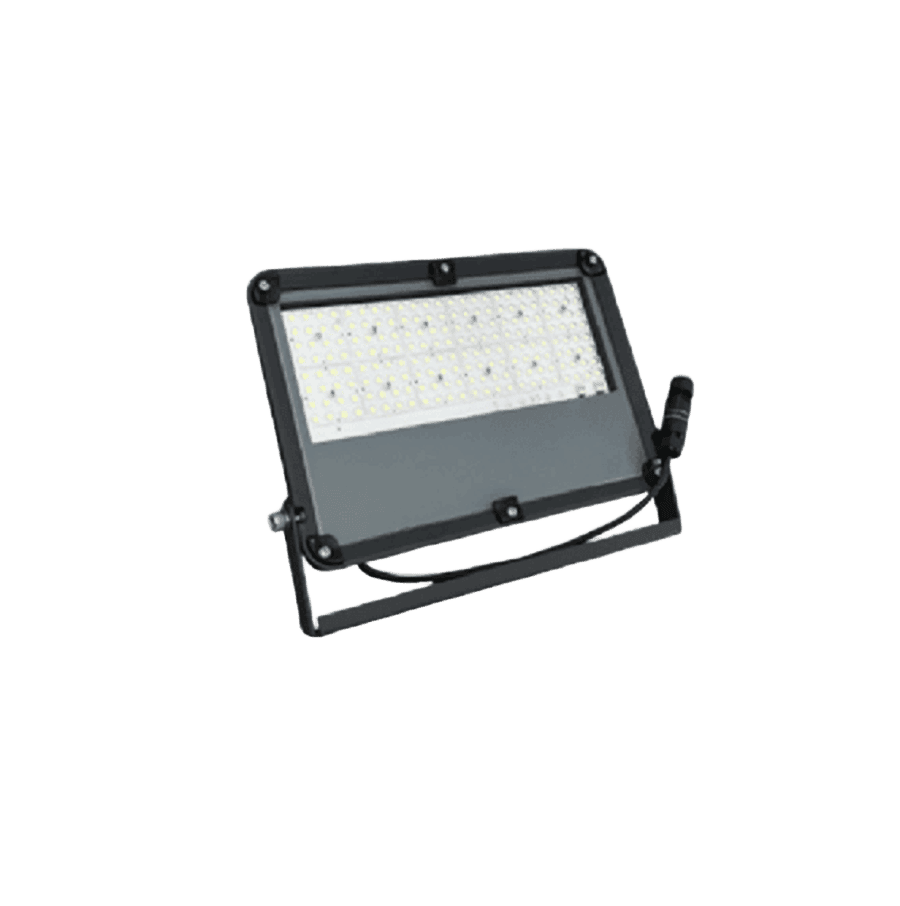

Floodlights Luxpro-4
High-Power LED Chip
Product Summary | Details |
|---|---|
LED Brands | CREE / Samsung / Osram / Philips |
Driver | Philips Enec Certificate LED Driver |
Efficacy (lm/W) | 90–150 lm/W |
Coating Color | RAL Code 9006 (Optional) |
Electrical Protection Class | Class I / Class II |
Standards Compliance | EN 60598‑2‑5; / EN 60598‑1 |
Production Note | Production can be tailored to special demands |
Description | Value / Options |
|---|---|
CRI | >70 / >80 (Optional) |
Colour Temperature CCT | 3000 K / 4000 K / 6500 K (Optional) |
Light Source | High Power LED |
LED Life | 50,000 hours |
Optical Light Distribution | Symmetric / Asymmetric (Optional) |
Mounting Console | Included |
Dimensions (mm) a x b x c | 373 x 292 x 43 |
Description | Value / Options |
|---|---|
Input Voltage | 220–240 VAC, 50-60 Hz |
Power Factor | >0.95 |
Dimming / Control Interfaces | Step Dim; 1–10 V; DALI; Zhaga Socket |
Driver | Philips Enec LED Driver |
Description | Value / Options |
|---|---|
Housing | Aluminium body |
Diffuser - Front Cover | 4 mm Tempered Glass |
Gasket | Silicone gasket |
Mounting Console | Included |
Paint RAL Code | 9006 / Any RAL Code |
Code | Power (W) | Luminous Flux (lm) | Efficacy (lm/W) |
|---|---|---|---|
LUX4.FL.00.120 | 120 | 13200 | 110 |
LUX4.FL.01.150 | 150 | 16500 | 110 |
LUX4.FL.02.180 | 180 | 19800 | 110 |
LUX4.FL.03.200 | 200 | 22000 | 110 |
LUX4.FL.04.120 | 120 | 14400 | 120 |
LUX4.FL.05.150 | 150 | 18000 | 120 |
LUX4.FL.06.180 | 180 | 21600 | 120 |
LUX4.FL.07.200 | 200 | 24000 | 120 |
LUX4.FL.08.120 | 120 | 15600 | 130 |
LUX4.FL.09.150 | 150 | 19500 | 130 |
LUX4.FL.10.180 | 180 | 23400 | 130 |
LUX4.FL.11.200 | 200 | 26000 | 130 |
