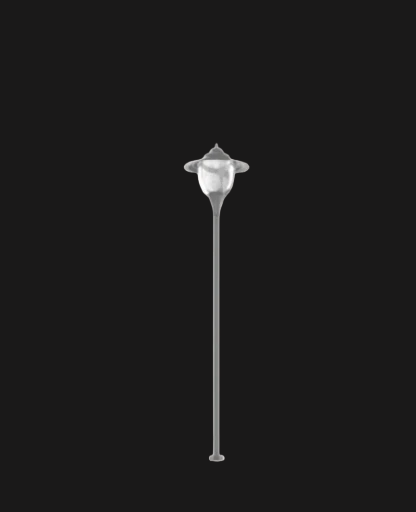

Park and Garden Luminaire Dream

High-Power LED Chip

QUALITY STANDARDS ISO, TSE, CE, ENEC, IP66,IK09,EMC

Product Summary

Details

LED Brands

CREE / Samsung / Osram / Philips

Driver

Philips Enec Certificate LED Driver

Efficacy  (lm/W)

90–150 lm/W

Coating  Color

RAL Code 9005, 9006, 7043 (Optional)

Electrical Protection Class

Class I

Standards Compliance

60598-2-2, LM80,

EN 62262, EN 60529

Production Note

Production can be tailored to special demands

CREE, PHILIPS, SAMSUNG, OSRAM

Description

Value / Options

CRI

>70

Colour Temperature CCT

4000 K / 3000K-6500 K (Optional)

Light Source

High Power LED

LED Life

50,000 hours

Optical Light Distribution

Asymmetric / Symmetric (Optional)

Description

Value / Options

Input Voltage

220–240 VAC, 50-60 Hz

Power Factor

>0.95

Dimming / Control Interfaces

Optional

Driver

Philips Enec LED Driver

Description

Value / Options

Luminaire Module Housing

Aluminium

Light Diffuser - Front Cover

PMMA Lens

Gasket

Silicone gasket

Paint RAL Code

RAL Code 9005, 9006, 7043 (Optional)

IP Rating

IP54

IK Rating Body

IK08

Code

Power (W)

Luminous Flux

(Total lm)

Efficacy (lm/W)

SMRT.PG.0030

30

2700

90

SMRT.PG.0060

60

5400

90

Code

Pole Dimensions (mm)

Pole Material

Pole Section

SMRT.PG.0030

3500x650x200

Metal and Aluminium

Available

Round Type

SMRT.PG.0060

3500x650x200

Metal and Aluminium

Available

Round Type
