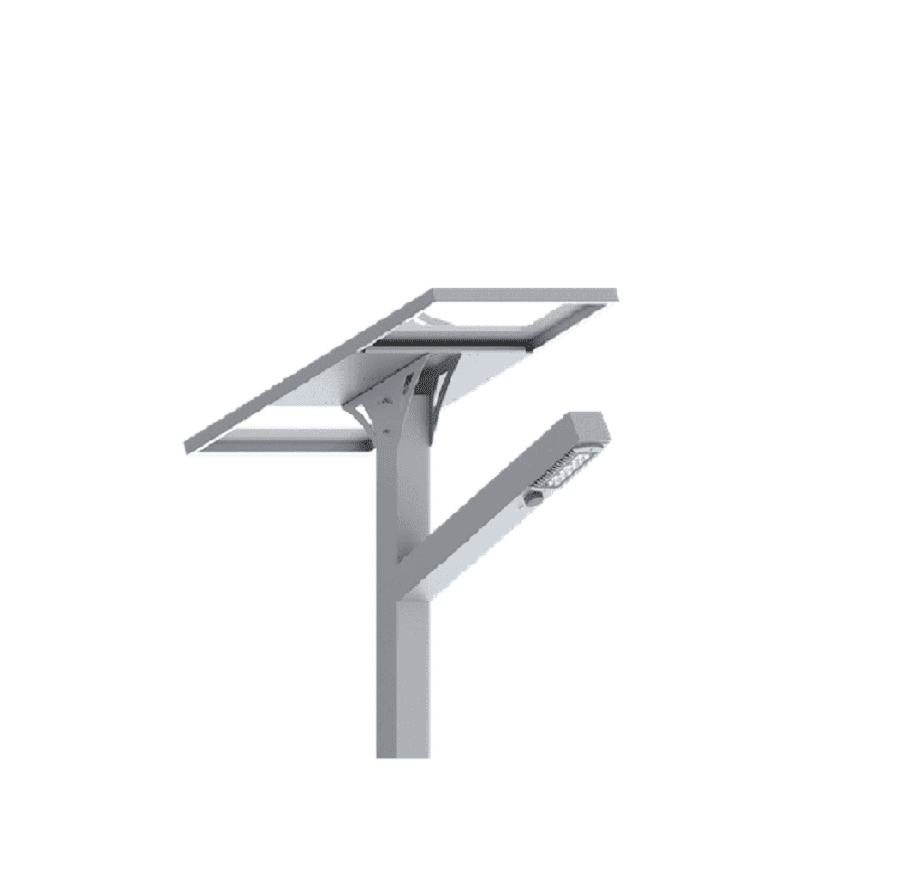

Solar Park and Garden Luminaire 40W/6000 lm
High-Power LED Chip
Product Summary | Details |
|---|---|
Product Code | LS-ALM-72S-40 / 100-36 |
Luminaire Power | 40 W |
Luminous Flux | 6000 lm |
LED Brands | 3030 SMD LED |
Driver | Enec Certificate LED drivers |
Charge Controller | 10 Ah MPPT |
Standards Compliance | EN60598-2-3, LM80, TM21 |
Production Note | Production can be tailored to special demands |
Description | Value / Options |
|---|---|
Solar Panel Power | 100 Wp Monocrystalline Perc. |
Solar Panel Life Span | 25 years |
System Voltage | 12,8 Vdc |
Charge Controller | 10 Ah MPPT |
Battery Type | 32700 LifePO4 |
Battery Capacity | 36 Ah, 460,80 Wh |
Battery Life Span | 3000 cycles with 80% discharge |
Input Voltage | Off Grid |
Frequency | Off Grid |
Description | Value / Options |
|---|---|
Housing | Aluminum |
IP Rating | IP65 |
IK Rating | IK09 |
RAL Code | 7016 |
Operating Temperature | -30°C / +50°C |
Luminaire Dimensions | 60 × 10 mm |
Luminaire Weight | 28,00 kg |
Console Length | 700 mm |
Pole Dimensions | 4mt./ 80x120mm, Rectangle Aluminum Pole |
Packing Dimensions & Weight | 4000 x 120 × 160 mm / 30,00 kg |
Description | Value / Options |
|---|---|
Luminire Power | 40 W |
Efficacy (lm / W) | 150 lm / W |
Luminous Flux | 6000 lm |
Light Source | 3030 Led |
LED Chip Lifetime | 100k hrs - LYO110 |
Driver Type | Enec Certificate Led Driver |
Motion Sensor | Yes / Microwave |
Class | III |
Description | Value / Options |
Light Distribution | Asymmetric |
Diffuser | PMMA optic |
Colour Temperature (CCT) | 6500 K |
CRI | >70 |
Description | Value / Options |
Step Dim | ✓ |
RAL Code | ✓ |
Autonomous Time | ✓ |
Colour Temperature | 3000K / 4000K / 5000 / 5700K |
CRI | > 80 |
Remote Control | Wifi |
