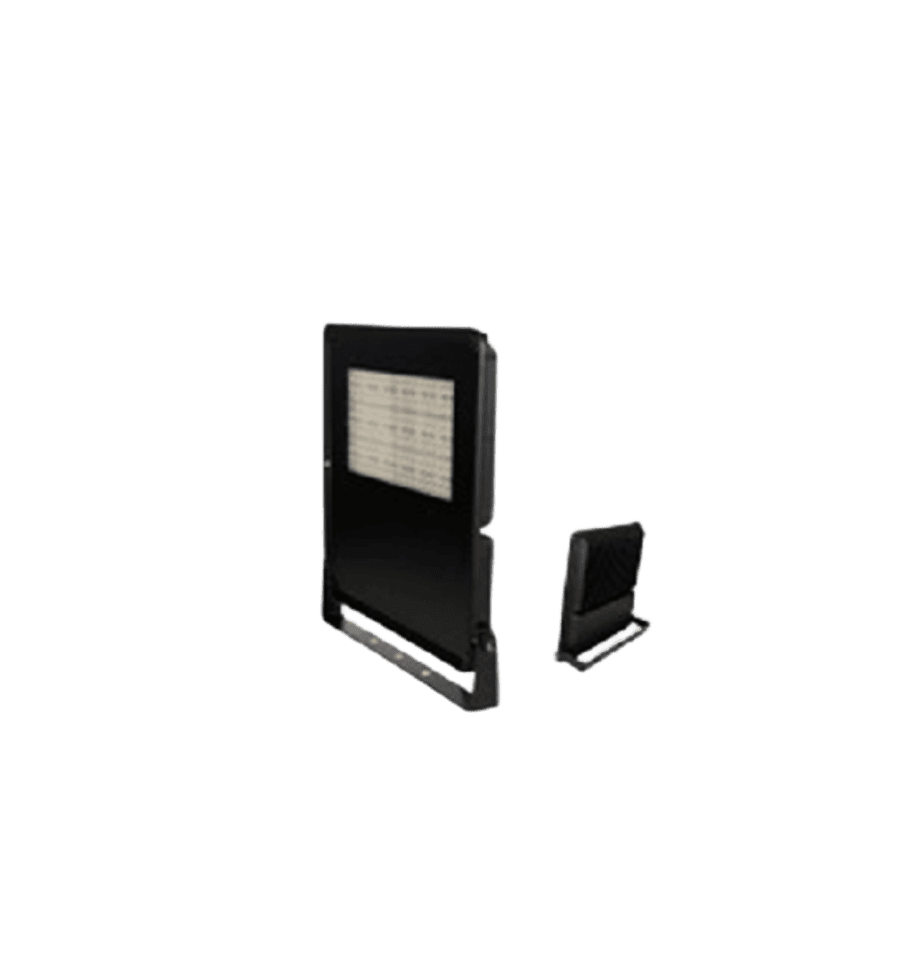

Floodlights Luxpro-5

High-Power LED Chip

QUALITY STANDARDS ISO, TSE, CE, ENEC, IP66,IK09,EMC

Product Summary

Details

LED Brands

CREE / Samsung / Osram / Philips

Driver

Philips Enec Certificate LED Driver

Efficacy  (lm/W)

90–150 lm/W

Coating  Color

RAL Code 9006 (Optional)

Electrical Protection Class

Class I / Class II

Standards Compliance

EN 60598‑2‑5; / EN 60598‑1

Production Note

Production can be tailored to special demands

CREE, PHILIPS, SAMSUNG, OSRAM

Description

Value / Options

CRI

>70  /  >80 (Optional)

Colour Temperature CCT

3000 K / 4000 K / 6500 K (Optional)

Light Source

High Power LED

LED Life

50,000 hours

Optical Light Distribution

Symmetric / Asymmetric (Optional)

Mounting Console

Included

Dimensions (mm) a x b x c

433 x 460 x 50

Description

Value / Options

Input Voltage

220–240 VAC, 50-60 Hz

Power Factor

>0.95

Dimming / Control Interfaces

Step Dim;  1–10 V;  DALI;  Zhaga Socket

Driver

Philips Enec LED Driver

Description

Value / Options

Housing

Aluminium body

Diffuser - Front Cover

4 mm Tempered Glass

Gasket

Silicone gasket

Mounting Console

Included

Paint RAL Code

9006 / Any RAL Code

Code

Power (W)

Luminous Flux (lm)

Efficacy (lm/W)

LUM5.FL.00.250

250

27500

110

LUM5.FL.01.300

300

33000

110

LUM5.FL.02.350

350

38500

110

LUM5.FL.03.250

250

30000

120

LUM5.FL.04.300

300

36000

120

LUM5.FL.05.350

350

42000

120

LUM5.FL.06.250

250

32500

130

LUM5.FL.07.300

300

39000

130

LUM5.FL.08.350

350

45500

130
